πŸ”§ Lab 13.2 - OSPF Virtual Links & Advanced Filtering
Cisco CCNP 300-410 (ENARSI) - OSPF Virtual Links, Route Filtering with Prefix-List & Route-Map
🎯 Lab Objective

This advanced CCNP-level lab addresses a critical OSPF design challenge: Area 2 is not directly connected to Area 0 (broken backbone topology). You will configure OSPF Virtual Links to logically extend Area 0 through Area 1 (transit area). Additionally, you'll implement advanced route filtering using prefix-lists and route-maps to control route advertisement.

Upon completion, you will master:

⚠️ Critical Design Issue:
Problem: B-1 is in Area 2, but Area 2 has NO direct connection to Area 0
Solution: Configure Virtual Link through Area 1 (transit area)
Without Virtual Link: B-1 cannot participate in OSPF (OSPF requires all areas connect to Area 0)
πŸ—ΊοΈ Network Topology

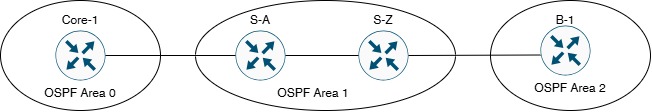

Lab 13.2 Network Topology

Topology Description:

⚠️ Virtual Link Requirement:
Because Area 2 (B-1) is not directly connected to Area 0, we must create a Virtual Link between:
β€’ S-Z (ABR between Area 1 and Area 2)
β€’ Core-1 (ABR between Area 0 and Area 1)
β€’ Transit Area: Area 1 (must be a normal area, not stub)
πŸ“‹ Device Information
Device Role OSPF Areas Router ID
Core-1 ABR (Area 0 ↔ Area 1) Area 0, Area 1 1.1.1.1
S-A Area 1 Internal Router Area 1 2.2.2.2
S-Z ABR (Area 1 ↔ Area 2) + Virtual Link Endpoint Area 1, Area 2, Virtual Link to Area 0 3.3.3.3
B-1 Area 2 Router (Isolated from Area 0) Area 2 4.4.4.4
🌐 IP Addressing Table
Device Interface IP Address Subnet Mask Connected To
Core-1 G0/0 203.18.61.1 255.255.255.252 (/30) S-A G0/0
Core-1 Loopback0 192.168.1.1 255.255.255.0 (/24) Internal Network
S-A G0/0 203.18.61.2 255.255.255.252 (/30) Core-1 G0/0
S-A G0/1 203.18.62.1 255.255.255.252 (/30) S-Z G0/1
S-A Loopback0 192.168.2.1 255.255.255.0 (/24) Internal Network
S-Z G0/1 203.18.62.2 255.255.255.252 (/30) S-A G0/1
S-Z G1/0 203.18.63.5 255.255.255.252 (/30) B-1 G1/0
S-Z Loopback0 192.168.3.1 255.255.255.0 (/24) Internal Network
B-1 G1/0 203.18.63.6 255.255.255.252 (/30) S-Z G1/0
B-1 Loopback0 192.168.4.1 255.255.255.0 (/24) Internal Network
πŸ”Œ Cable Connection Summary
Connection Network Subnet Purpose OSPF Area
Core-1 (G0/0) ↔ S-A (G0/0) 203.18.61.0/30 Area 0 to Area 1 Area 0 / Area 1
S-A (G0/1) ↔ S-Z (G0/1) 203.18.62.0/30 Area 1 Internal Area 1
S-Z (G1/0) ↔ B-1 (G1/0) 203.18.63.4/30 Area 1 to Area 2 Area 1 / Area 2
πŸ—οΈ OSPF Design Architecture
OSPF Area Type Routers Networks Special Notes
Area 0 Backbone Core-1 203.18.61.0/30 (Core-1 side)
192.168.1.0/24
Backbone area
Area 1 Transit Area Core-1, S-A, S-Z 203.18.61.0/30 (S-A side)
203.18.62.0/30
192.168.2.0/24
192.168.3.0/24
Transit area for Virtual Link
Area 2 Standard (Isolated) S-Z, B-1 203.18.63.4/30
192.168.4.0/24
NOT connected to Area 0 - needs Virtual Link
ℹ️ Virtual Link Explanation:
A Virtual Link is a logical tunnel that extends Area 0 through a transit area (Area 1) to reach a remote area (Area 2). It's configured between two ABRs:
β€’ Core-1 (1.1.1.1) - ABR between Area 0 and Area 1
β€’ S-Z (3.3.3.3) - ABR between Area 1 and Area 2
β€’ The virtual link uses Router IDs, not IP addresses
β€’ Area 1 becomes the transit area carrying virtual link traffic
βš™οΈ Lab Configuration Tasks
ℹ️ Configuration Sequence: Complete tasks in order. Virtual Link must be configured AFTER basic OSPF.
πŸ“ Task 1: Basic Interface Configuration

Objective: Configure all interfaces with correct IP addressing.

Step 1.1: Configure Core-1

Core-1(config)# hostname Core-1 Core-1(config)# Core-1(config)# interface GigabitEthernet0/0 Core-1(config-if)# description ** Link to S-A - Area 0/1 Boundary ** Core-1(config-if)# ip address 203.18.61.1 255.255.255.252 Core-1(config-if)# no shutdown Core-1(config-if)# exit Core-1(config)# Core-1(config)# interface Loopback0 Core-1(config-if)# description ** Core-1 Internal Network - Area 0 ** Core-1(config-if)# ip address 192.168.1.1 255.255.255.0 Core-1(config-if)# exit

Step 1.2: Configure S-A

S-A(config)# hostname S-A S-A(config)# S-A(config)# interface GigabitEthernet0/0 S-A(config-if)# description ** Link to Core-1 - Area 1 ** S-A(config-if)# ip address 203.18.61.2 255.255.255.252 S-A(config-if)# no shutdown S-A(config-if)# exit S-A(config)# S-A(config)# interface GigabitEthernet0/1 S-A(config-if)# description ** Link to S-Z - Area 1 ** S-A(config-if)# ip address 203.18.62.1 255.255.255.252 S-A(config-if)# no shutdown S-A(config-if)# exit S-A(config)# S-A(config)# interface Loopback0 S-A(config-if)# description ** S-A Internal Network - Area 1 ** S-A(config-if)# ip address 192.168.2.1 255.255.255.0 S-A(config-if)# exit

Step 1.3: Configure S-Z

S-Z(config)# hostname S-Z S-Z(config)# S-Z(config)# interface GigabitEthernet0/1 S-Z(config-if)# description ** Link to S-A - Area 1 ** S-Z(config-if)# ip address 203.18.62.2 255.255.255.252 S-Z(config-if)# no shutdown S-Z(config-if)# exit S-Z(config)# S-Z(config)# interface GigabitEthernet1/0 S-Z(config-if)# description ** Link to B-1 - Area 2 ** S-Z(config-if)# ip address 203.18.63.5 255.255.255.252 S-Z(config-if)# no shutdown S-Z(config-if)# exit S-Z(config)# S-Z(config)# interface Loopback0 S-Z(config-if)# description ** S-Z Internal Network - Area 1 ** S-Z(config-if)# ip address 192.168.3.1 255.255.255.0 S-Z(config-if)# exit

Step 1.4: Configure B-1

B-1(config)# hostname B-1 B-1(config)# B-1(config)# interface GigabitEthernet1/0 B-1(config-if)# description ** Link to S-Z - Area 2 ** B-1(config-if)# ip address 203.18.63.6 255.255.255.252 B-1(config-if)# no shutdown B-1(config-if)# exit B-1(config)# B-1(config)# interface Loopback0 B-1(config-if)# description ** B-1 Internal Network - Area 2 ** B-1(config-if)# ip address 192.168.4.1 255.255.255.0 B-1(config-if)# exit
βœ… Verification Task 1:
Core-1# show ip interface brief Core-1# ping 203.18.61.2 S-A# ping 203.18.62.2 S-Z# ping 203.18.63.6
πŸ“ Task 2: Configure OSPF (WITHOUT Virtual Link First)

Objective: Configure basic OSPF with proper area assignments. At this stage, Area 2 will NOT work properly.

⚠️ Expected Issue: After this task, B-1 (Area 2) will NOT see routes from Area 0 because Area 2 is not connected to Area 0. This is normal - we'll fix it in Task 3 with Virtual Link.

Step 2.1: Configure Core-1 (ABR: Area 0 ↔ Area 1)

Core-1(config)# router ospf 1 Core-1(config-router)# router-id 1.1.1.1 Core-1(config-router)# log-adjacency-changes Core-1(config-router)# Core-1(config-router)# ! Area 0 Network Core-1(config-router)# network 192.168.1.0 0.0.0.255 area 0 Core-1(config-router)# Core-1(config-router)# ! Area 1 Network Core-1(config-router)# network 203.18.61.0 0.0.0.3 area 1 Core-1(config-router)# Core-1(config-router)# passive-interface Loopback0 Core-1(config-router)# exit

Step 2.2: Configure S-A (Area 1 Internal Router)

S-A(config)# router ospf 1 S-A(config-router)# router-id 2.2.2.2 S-A(config-router)# log-adjacency-changes S-A(config-router)# S-A(config-router)# ! All networks in Area 1 S-A(config-router)# network 203.18.61.0 0.0.0.3 area 1 S-A(config-router)# network 203.18.62.0 0.0.0.3 area 1 S-A(config-router)# network 192.168.2.0 0.0.0.255 area 1 S-A(config-router)# S-A(config-router)# passive-interface Loopback0 S-A(config-router)# exit

Step 2.3: Configure S-Z (ABR: Area 1 ↔ Area 2)

S-Z(config)# router ospf 1 S-Z(config-router)# router-id 3.3.3.3 S-Z(config-router)# log-adjacency-changes S-Z(config-router)# S-Z(config-router)# ! Area 1 Networks S-Z(config-router)# network 203.18.62.0 0.0.0.3 area 1 S-Z(config-router)# network 192.168.3.0 0.0.0.255 area 1 S-Z(config-router)# S-Z(config-router)# ! Area 2 Network S-Z(config-router)# network 203.18.63.4 0.0.0.3 area 2 S-Z(config-router)# S-Z(config-router)# passive-interface Loopback0 S-Z(config-router)# exit

Step 2.4: Configure B-1 (Area 2 Router)

B-1(config)# router ospf 1 B-1(config-router)# router-id 4.4.4.4 B-1(config-router)# log-adjacency-changes B-1(config-router)# B-1(config-router)# ! All networks in Area 2 B-1(config-router)# network 203.18.63.4 0.0.0.3 area 2 B-1(config-router)# network 192.168.4.0 0.0.0.255 area 2 B-1(config-router)# B-1(config-router)# passive-interface Loopback0 B-1(config-router)# exit
⚠️ Verification Task 2 - Observe the Problem:
! On Core-1 (Area 0) Core-1# show ip ospf neighbor ! Should see S-A as neighbor Core-1# show ip route ospf ! Will NOT see 192.168.4.0/24 (B-1's network) ! On B-1 (Area 2) B-1# show ip route ospf ! Will NOT see 192.168.1.0/24 (Core-1's Area 0 network) ! This is because Area 2 is NOT connected to Area 0 ! On S-Z (ABR) S-Z# show ip ospf border-routers ! Will show Core-1 as unreachable for Area 0
πŸ”΄ Expected Problem: Area 2 cannot communicate with Area 0 because there's no direct connection. Virtual Link is required!
πŸ“ Task 3: Configure OSPF Virtual Link (Fix Broken Backbone)

Objective: Create a virtual link through Area 1 (transit area) to logically connect Area 2 to Area 0.

ℹ️ Virtual Link Requirements:
1. Both endpoints must be ABRs
2. Transit area (Area 1) must be a normal area (not stub)
3. Configuration uses Router IDs (not IP addresses)
4. Must be configured on BOTH endpoints

Step 3.1: Configure Virtual Link on S-A

Core-1(config)# router ospf 1 S-A(config-router)# ! Virtual Link through Area 1 to S-Z (3.3.3.3) S-A(config-router)# area 1 virtual-link 3.3.3.3 S-A(config-router)# exit ! Explanation: ! - "area 1" = Transit area ! - "virtual-link 3.3.3.3" = S-Z's Router ID (the other endpoint) ! - This creates a logical tunnel through Area 1

Step 3.2: Configure Virtual Link on S-Z

S-Z(config)# router ospf 1 S-Z(config-router)# ! Virtual Link through Area 1 to S-A (2.2.2.2) S-Z(config-router)# area 1 virtual-link 2.2.2.2 S-Z(config-router)# exit ! Explanation: ! - "area 1" = Transit area (must match S-A) ! - "virtual-link 2.2.2.2" = S-A's Router ID ! - Both sides must have matching configuration
βœ… Verification Task 3 - Virtual Link Should Work:
! On S-A S-A# show ip ospf virtual-links ! Should show virtual link to 3.3.3.3 in UP state ! On S-Z S-Z# show ip ospf virtual-links ! Should show virtual link to 2.2.2.2 in UP state ! On S-A S-A# show ip route ospf ! Should NOW see 192.168.4.0/24 (B-1's network) via virtual link ! On B-1 B-1# show ip route ospf ! Should NOW see 192.168.1.0/24 (Core-1's Area 0 network) ! Test end-to-end connectivity B-1# ping 192.168.1.1 source 192.168.4.1 ! Should succeed via virtual link
πŸ“ Task 4: Configure Advanced Route Filtering

Objective: Use prefix-list and route-map to filter specific networks from OSPF advertisement.

Scenario: We want to prevent 192.168.2.0/24 (S-A's loopback) from being advertised to Area 0.

Step 4.1: Create Prefix-List on Core-1

Core-1(config)# ! Create prefix-list to identify network to filter Core-1(config)# ip prefix-list FILTER_SA_NETWORK seq 5 deny 192.168.2.0/24 Core-1(config)# ip prefix-list FILTER_SA_NETWORK seq 10 permit 0.0.0.0/0 le 32 Core-1(config)# Core-1(config)# ! Explanation: Core-1(config)# ! seq 5: DENY 192.168.2.0/24 (S-A's loopback) Core-1(config)# ! seq 10: PERMIT all other routes (0.0.0.0/0 le 32 = any route)

Step 4.2: Create Route-Map on Core-1

Core-1(config)# ! Create route-map using the prefix-list Core-1(config)# route-map OSPF_FILTER_IN deny 10 Core-1(config-route-map)# match ip address prefix-list FILTER_SA_NETWORK Core-1(config-route-map)# exit Core-1(config)# Core-1(config)# route-map OSPF_FILTER_IN permit 20 Core-1(config-route-map)# exit Core-1(config)# Core-1(config)# ! Explanation: Core-1(config)# ! Sequence 10: DENY routes matching FILTER_SA_NETWORK (192.168.2.0/24) Core-1(config)# ! Sequence 20: PERMIT all other routes

Step 4.3: Apply Route-Map to OSPF

Core-1(config)# router ospf 1 Core-1(config-router)# ! Apply route-map to filter routes from Area 1 into Area 0 Core-1(config-router)# distribute-list route-map OSPF_FILTER_IN in Core-1(config-router)# exit ! Explanation: ! - "distribute-list route-map OSPF_FILTER_IN in" ! - Filters routes ENTERING the routing table from OSPF ! - 192.168.2.0/24 will be filtered from Core-1's routing table
βœ… Verification Task 4 - Route Filtering:
! On Core-1 - Verify prefix-list Core-1# show ip prefix-list FILTER_SA_NETWORK ! Should show deny 192.168.2.0/24 and permit 0.0.0.0/0 le 32 ! On Core-1 - Verify route-map Core-1# show route-map OSPF_FILTER_IN ! Should show the route-map with prefix-list match ! On Core-1 - Check routing table Core-1# show ip route ospf | include 192.168.2 ! Should NOT show 192.168.2.0/24 (filtered) ! On Core-1 - Check OSPF database Core-1# show ip ospf database | include 192.168.2 ! May still appear in OSPF database (LSA) but not in routing table ! On S-A - Verify route is still advertised S-A# show ip route | include 192.168.2 ! Should still show 192.168.2.0/24 (only filtered on Core-1)
⚠️ Important Note - Filtering Behavior:
β€’ distribute-list in: Filters routes from entering the routing table (local router only)
β€’ distribute-list out: Filters routes from being advertised to neighbors
β€’ The filtered route (192.168.2.0/24) still exists in OSPF LSDB but won't be installed in Core-1's routing table
πŸ“ Task 5: Alternative Filtering - Filter at ABR (Advanced)

Objective: Filter routes at the ABR boundary to prevent Type 3 LSA generation.

Scenario: Prevent 192.168.3.0/24 (S-Z's loopback) from being advertised into Area 0.

Step 5.1: Configure Area Filtering on Core-1

Core-1(config)# ! Create prefix-list for S-Z's network Core-1(config)# ip prefix-list FILTER_SZ_NETWORK seq 5 deny 192.168.3.0/24 Core-1(config)# ip prefix-list FILTER_SZ_NETWORK seq 10 permit 0.0.0.0/0 le 32 Core-1(config)# Core-1(config)# ! Apply filter at ABR boundary (Area 1 to Area 0) Core-1(config)# router ospf 1 Core-1(config-router)# area 1 filter-list prefix FILTER_SZ_NETWORK in Core-1(config-router)# exit ! Explanation: ! - "area 1 filter-list prefix FILTER_SZ_NETWORK in" ! - Filters Type 3 LSAs coming FROM Area 1 INTO Area 0 ! - This is ABR-specific filtering (only works on ABRs)
ℹ️ Difference: distribute-list vs area filter-list:
distribute-list:
β€’ Filters routes from entering local routing table
β€’ LSAs still exist in OSPF database
β€’ Works on any OSPF router

area filter-list:
β€’ Prevents Type 3 LSA generation at ABR boundary
β€’ LSAs are NOT created/advertised to other areas
β€’ Only works on ABRs (Area Border Routers)
βœ… Verification Task 5:
! On Core-1 - Check routing table Core-1# show ip route ospf | include 192.168.3 ! Should NOT show 192.168.3.0/24 (filtered at ABR) ! On Core-1 - Check OSPF database for Type 3 LSAs Core-1# show ip ospf database summary | include 192.168.3 ! Should NOT show Type 3 LSA for 192.168.3.0/24 ! On S-Z - Verify route is still in Area 1 S-Z# show ip route | include 192.168.3 ! Should still show 192.168.3.0/24 (only filtered from Area 0)
πŸ“ Task 6: Complete Verification

Objective: Verify all OSPF features including virtual link and filtering.

Step 6.1: Verify Virtual Link Status

S-A# show ip ospf virtual-links Virtual Link OSPF_VL0 to router 3.3.3.3 is up Run as demand circuit DoNotAge LSA allowed. Transit area 1, via interface GigabitEthernet0/0 Topology-MTID Cost Disabled Shutdown Topology Name 0 1 no no Base Transmit Delay is 1 sec, State POINT_TO_POINT, Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Step 6.2: Verify Virtual Link Status

S-Z# show ip ospf virtual-links Virtual Link OSPF_VL0 to router 2.2.2.2 is up Run as demand circuit DoNotAge LSA allowed. Transit area 1, via interface GigabitEthernet0/0 Topology-MTID Cost Disabled Shutdown Topology Name 0 1 no no Base Transmit Delay is 1 sec, State POINT_TO_POINT, Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Step 6.3: Test End-to-End Connectivity

! From B-1 (Area 2) to Core-1 (Area 0) B-1# ping 192.168.1.1 source 192.168.4.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds: Packet sent with a source address of 192.168.4.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms ! Traceroute to see path B-1# traceroute 192.168.1.1 source 192.168.4.1 1 203.18.63.5 1 msec 1 msec 1 msec ! S-Z 2 203.18.62.1 1 msec 1 msec 1 msec ! S-A 3 192.168.1.1 1 msec * 1 msec ! Core-1 (via virtual link)
πŸ“„ Complete Device Configurations
ℹ️ Complete Configurations: Copy-paste ready configurations for all devices.

Core-1 Complete Configuration:

hostname Core-1 ! interface GigabitEthernet0/0 description ** Link to S-A - Area 0/1 Boundary ** ip address 203.18.61.1 255.255.255.252 no shutdown ! interface Loopback0 description ** Core-1 Internal Network - Area 0 ** ip address 192.168.1.1 255.255.255.0 ! ! Prefix-list for filtering S-A's network ip prefix-list FILTER_SA_NETWORK seq 5 deny 192.168.2.0/24 ip prefix-list FILTER_SA_NETWORK seq 10 permit 0.0.0.0/0 le 32 ! ! Prefix-list for filtering S-Z's network at ABR ip prefix-list FILTER_SZ_NETWORK seq 5 deny 192.168.3.0/24 ip prefix-list FILTER_SZ_NETWORK seq 10 permit 0.0.0.0/0 le 32 ! ! Route-map for distribute-list filtering route-map OSPF_FILTER_IN deny 10 match ip address prefix-list FILTER_SA_NETWORK ! route-map OSPF_FILTER_IN permit 20 ! router ospf 1 router-id 1.1.1.1 log-adjacency-changes area 1 filter-list prefix FILTER_SZ_NETWORK in passive-interface Loopback0 network 192.168.1.0 0.0.0.255 area 0 network 203.18.61.0 0.0.0.3 area 1 distribute-list route-map OSPF_FILTER_IN in ! end

S-A Complete Configuration:

hostname S-A ! interface GigabitEthernet0/0 description ** Link to Core-1 - Area 1 ** ip address 203.18.61.2 255.255.255.252 no shutdown ! interface GigabitEthernet0/1 description ** Link to S-Z - Area 1 ** ip address 203.18.62.1 255.255.255.252 no shutdown ! interface Loopback0 description ** S-A Internal Network - Area 1 ** ip address 192.168.2.1 255.255.255.0 ! router ospf 1 router-id 2.2.2.2 log-adjacency-changes passive-interface Loopback0 area 1 virtual-link 3.3.3.3 network 203.18.61.0 0.0.0.3 area 1 network 203.18.62.0 0.0.0.3 area 1 network 192.168.2.0 0.0.0.255 area 1 ! end

S-Z Complete Configuration:

hostname S-Z ! interface GigabitEthernet0/1 description ** Link to S-A - Area 1 ** ip address 203.18.62.2 255.255.255.252 no shutdown ! interface GigabitEthernet1/0 description ** Link to B-1 - Area 2 ** ip address 203.18.63.5 255.255.255.252 no shutdown ! interface Loopback0 description ** S-Z Internal Network - Area 1 ** ip address 192.168.3.1 255.255.255.0 ! router ospf 1 router-id 3.3.3.3 log-adjacency-changes area 1 virtual-link 2.2.2.2 passive-interface Loopback0 network 203.18.62.0 0.0.0.3 area 1 network 192.168.3.0 0.0.0.255 area 1 network 203.18.63.4 0.0.0.3 area 2 ! end

B-1 Complete Configuration:

hostname B-1 ! interface GigabitEthernet1/0 description ** Link to S-Z - Area 2 ** ip address 203.18.63.6 255.255.255.252 no shutdown ! interface Loopback0 description ** B-1 Internal Network - Area 2 ** ip address 192.168.4.1 255.255.255.0 ! router ospf 1 router-id 4.4.4.4 log-adjacency-changes passive-interface Loopback0 network 203.18.63.4 0.0.0.3 area 2 network 192.168.4.0 0.0.0.255 area 2 ! end
βœ… Lab Verification Checklist
πŸ” Verification Commands Reference
Command Purpose
show ip ospf virtual-links Verify virtual link status and state
show ip ospf neighbor Verify OSPF adjacencies (including virtual link)
show ip ospf border-routers View ABR information and reachability
show ip route ospf View OSPF routes (check filtering)
show ip prefix-list Verify prefix-list configuration and matches
show route-map Verify route-map configuration
show ip ospf database summary View Type 3 LSAs (inter-area routes)
show ip protocols View OSPF configuration and filters
debug ip ospf adj Debug OSPF adjacency formation
πŸ”§ Troubleshooting Guide
⚠️ Common Issues: Systematic troubleshooting for virtual links and filtering.

Issue 1: Virtual Link Not Coming Up

Problem Cause Solution
Virtual link down Incorrect Router IDs Verify Router IDs match configuration (show ip ospf)
Virtual link not forming Transit area mismatch Both sides must use same transit area number
Virtual link unreachable No connectivity through transit area Verify OSPF in transit area (Area 1) is working
Virtual link neighbor missing Transit area is stub Transit area CANNOT be stub/NSSA

Virtual Link Troubleshooting Commands:

! Check virtual link status show ip ospf virtual-links ! Verify Router IDs show ip ospf | include Router ID ! Check OSPF neighbors (virtual link appears as neighbor) show ip ospf neighbor ! Check ABR status show ip ospf border-routers ! Enable debugging debug ip ospf adj debug ip ospf virtual-links ! Disable debugging undebug all

Issue 2: Route Filtering Not Working

Problem Cause Solution
Route still appears Prefix-list not matching Verify prefix-list with "show ip prefix-list"
All routes filtered Missing permit statement Add "permit 0.0.0.0/0 le 32" to prefix-list
Filter not applied distribute-list not configured Verify with "show ip protocols"
ABR filter not working Wrong area specified Check area number in filter-list command

Filtering Troubleshooting Commands:

! Check prefix-list matches show ip prefix-list FILTER_SA_NETWORK show ip prefix-list detail ! Verify route-map show route-map OSPF_FILTER_IN ! Check if filters are applied show ip protocols | section ospf ! View routing table show ip route ospf ! Check OSPF database show ip ospf database summary ! Test prefix-list match show ip prefix-list FILTER_SA_NETWORK 192.168.2.1

Issue 3: Area 2 Cannot Reach Area 0

! On B-1 (Area 2) B-1# show ip route ospf ! Should see Area 0 routes ! If missing, check virtual link on S-Z S-Z# show ip ospf virtual-links ! Must be UP ! Check S-Z is ABR for both Area 1 and Area 2 S-Z# show ip ospf | include Area ! Verify Area 1 is normal area (not stub) Core-1# show ip ospf | include Area S-Z# show ip ospf | include Area ! Check OSPF database on S-Z S-Z# show ip ospf database ! Should see LSAs from all areas
πŸŽ“ Key Learning Points

1. OSPF Virtual Links

2. OSPF Route Filtering

3. Prefix-Lists

4. Route-Maps

5. OSPF Area Design Rules

πŸš€ Advanced Topics

1. Virtual Link Authentication

! Add MD5 authentication to virtual link Core-1(config-router)# area 1 virtual-link 3.3.3.3 authentication message-digest Core-1(config-router)# area 1 virtual-link 3.3.3.3 message-digest-key 1 md5 SECRET_KEY ! On S-Z S-Z(config-router)# area 1 virtual-link 1.1.1.1 authentication message-digest S-Z(config-router)# area 1 virtual-link 1.1.1.1 message-digest-key 1 md5 SECRET_KEY

2. Advanced Prefix-List Examples

! Match specific network ip prefix-list EXACT seq 5 permit 192.168.1.0/24 ! Match any /24 subnet in 10.0.0.0/8 ip prefix-list RANGE seq 5 permit 10.0.0.0/8 ge 24 le 24 ! Match any subnet from /24 to /30 in 172.16.0.0/12 ip prefix-list SUBNET seq 5 permit 172.16.0.0/12 ge 24 le 30 ! Match default route only ip prefix-list DEFAULT seq 5 permit 0.0.0.0/0 ! Match all routes except default ip prefix-list NO_DEFAULT seq 5 deny 0.0.0.0/0 ip prefix-list NO_DEFAULT seq 10 permit 0.0.0.0/0 le 32

3. Multiple Virtual Links

πŸ“– Lab Summary
Component Configuration Status
Network Topology 4 routers, 3 OSPF areas (broken backbone) βœ… Configured
Virtual Link Core-1 ↔ S-Z through Area 1 βœ… Working
Route Filtering Prefix-list + Route-map + Area filter βœ… Active
Filtered Networks 192.168.2.0/24, 192.168.3.0/24 βœ… Filtered
Area 2 Connectivity Reaches Area 0 via virtual link βœ… Verified

πŸŽ‰ Lab 13.2 Completed!

OSPF Virtual Links & Advanced Filtering

Skills Mastered: Virtual Links | Broken Backbone Fix | Prefix-Lists | Route-Maps | ABR Filtering

CCNP ENARSI - Expert Level Lab

πŸ”– Quick Reference Card
Task Command
Configure Virtual Link area [transit-area] virtual-link [router-id]
Create Prefix-List ip prefix-list NAME seq # {permit|deny} A.B.C.D/len
Create Route-Map route-map NAME {permit|deny} [seq]
Match Prefix-List match ip address prefix-list NAME
Apply Distribute-List distribute-list route-map NAME {in|out}
ABR Area Filter area X filter-list prefix NAME {in|out}
Show Virtual Links show ip ospf virtual-links
Show Prefix-List show ip prefix-list [NAME]
